Systems

Here is an overview of our products.
Feel free to talk to our employees about any additional structures you may need.

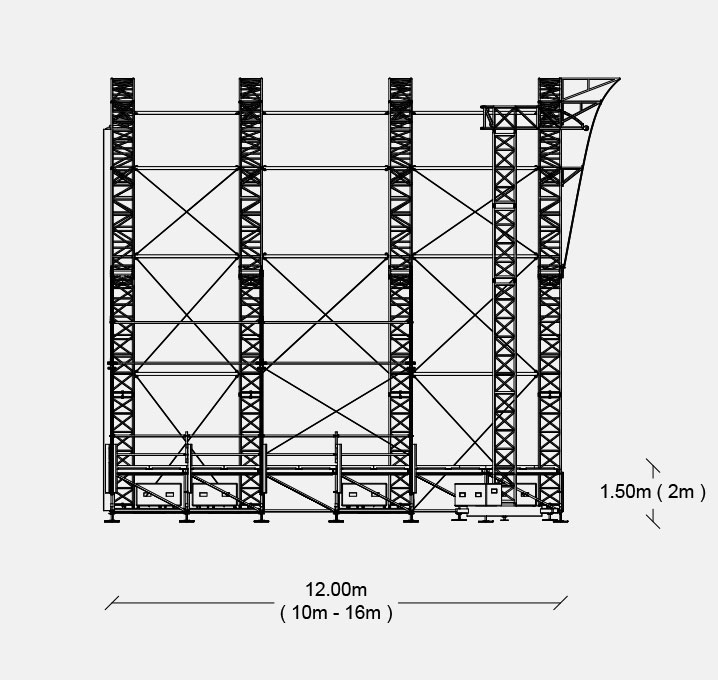

Stage CPRB

Performance area: 15,00m x 10,00m – 16,00m x 16,00m
Height of podium: 1,50m – 2,00m
Clearance: 9,25m – 9,75m (center of arch)

Side storages: 4,00m x 4,00m – 4,00m x 16,00m

Total dimensions: 17,00m x 12,00 – 25,00m x 16,00m
Total height: 12,00m

Rigging capacity: 12,8t – 16,0t

Stage CPK

Performance area: 18,00m x 12,00m – 18,00m x 16,00m
Height of podium: 1,50m – 2,00m
Clearance: 10,90m – 11,40m (center of arch)

Side storages: 2,00m x 4,00m – 4,00m x 16,00m

Total dimensions: 19,00m x 12,00m – 27,00m x 16,00m
Total height: 13,00m

Rigging capacity: 12,8t – 16,0t

Stage CPG

Performance area: 17,00m x 12,00m
Height of podium: 2,00m – 2,50m
Clearance: 9,37m – 9,87m

Side storages: 5,00m x 12,00m
Back Storage: 4,00m x 28,00m

Total dimensions: 28,00m x 12,00m – 28,00m x 16,00m (+ ramps and loading-dock)
Total height: 13,00m

Rigging capacity: 25,5t

Stage CPR

Performance area: 20,38m x 14,00m
Height of podium: 1,90m – 2,40m
Clearance: 13,43m – 13,93m

Side storages: 6,00m x 14,00m
Back Storage: 6,00m x 22,00m

Total dimensions: 36,00m x 14,00m – 36,00m x 20,00m (+ ramps and loading-dock)
Total height: 18,00m

Rigging capacity: 57,1t

Stage CPE

Performance area: 27,00m x 17,00m
Height of podium: 1,90m – 2,40m
Clearance: 13,50m – 14,00m

Side storages: 9,00m x 17,00m
Back Storage: 6,00m x 49,00m

Total dimensions: 49,00m x 17,00m – 49,00m x 23,00m (+ ramps and loading-dock)
Total height: 19,00m

Rigging capacity: 70t approx.
